錫華 XH-433-25 實驗室設備小型造粒擠出機

簡介：本機適合工程塑膠、改性塑膠、廢舊塑膠、色母粒的混煉加工實驗。具有均質、塑化著色、填充改性等功能。

Introduction: This machine is suitable for mixing and processing experiments of engineering plastics, modified plastics, waste plastics and masterbatches. It has homogeneous, plastic coloring, filling modification functions.

工作原理：本機通過加熱、混合，剪切、塑化、壓實排氣作用下，物料塑化成均勻的熔體，并在雙螺桿的擠壓下，通過機頭擠出圓形的條狀料，經冷卻水槽水冷后或者風冷后，再經切粒機切粒，得到塑膠粒料。

Working principle: Under the action of heating, mixing, shearing, plasticizing and compacting the exhaust, the material is plastified into a uniform melt, and extruded under the twin-screw and extruded through the nose into round strips. The long strips after being cooled by water in the cooling water tank or after being air-cooled, then pelletized by a pelletizer to obtain plastic pellets.

型號:XH-433-25

控制系統:PLC控制

產量:約1-10kg/h根據工藝配方

螺桿直徑:25mm

長徑比:1:33

螺桿轉速rpm:0~95rpm

冷卻裝置:水冷/風冷（選配）

風機:1/4HP

切粒機(原有切粒裝置):切粒機Granulator

電源:3∮，AC380

溫馨提示：

     由于客戶實驗的項目和需求不同，估設備的配置不同，所以以上的報價和數據參數僅供參考。

     具體設備配置和價格還請電話溝通后，我們將會以文件文檔的形式，給您提供正式的報價以及參數說明，還請知悉，謝謝！

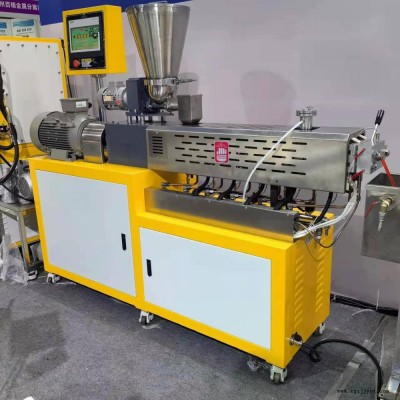

設備圖片：

設備發貨：
